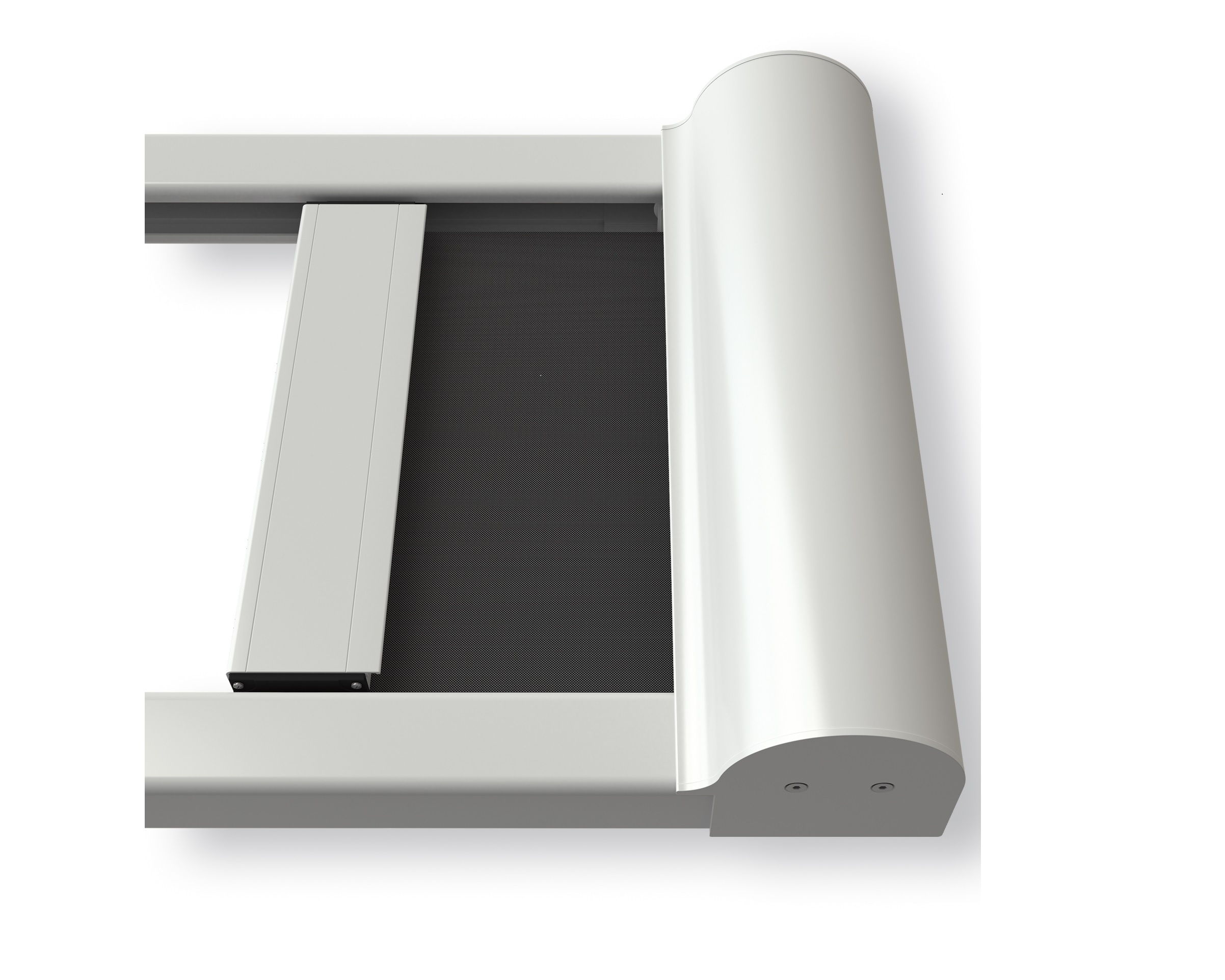

Roller blinds » Basilea

For the sun protection of roof-lights, verandas or windows with any inclination, Basilea is the best solution.

The installation is very simple and convenient, because it is enough to fix the lateral guides and the self-supporting cover box.

This product combines facility of installation, aesthetical pureness and elegance.

Also the system of the fabric´s tension is planned to achieve the maximum of efficiency and of beauty, because it´s completely hidden within the guides and the bottom rail has a closing carter.

Table

Roller tube Material: Galvanized steel with ogive
Cassette Material / Finishing: Powder-coated extruded aluminium
Inspectable Yes
Bottom rail Material / Finishing: Powder-coated extruded aluminium
Guides Material / Finishing: Powder-coated extruded aluminium
Inspectable: No
Screws Material: Stainless steel
Drive Motor: AC 230V
Brackets Material / Finishing: Plastic
Installation options   Self-supporting with standard brackets
  Self-supporting reveal mounting
  Self-supporting with combined guides
Dimension Width (mm): 5600 max
Height (mm): 4000 max
Fabric confectioning Roller tube: Keder Ø 7 mm
Bottom rail: Fold with rigid rod
Certification   13561

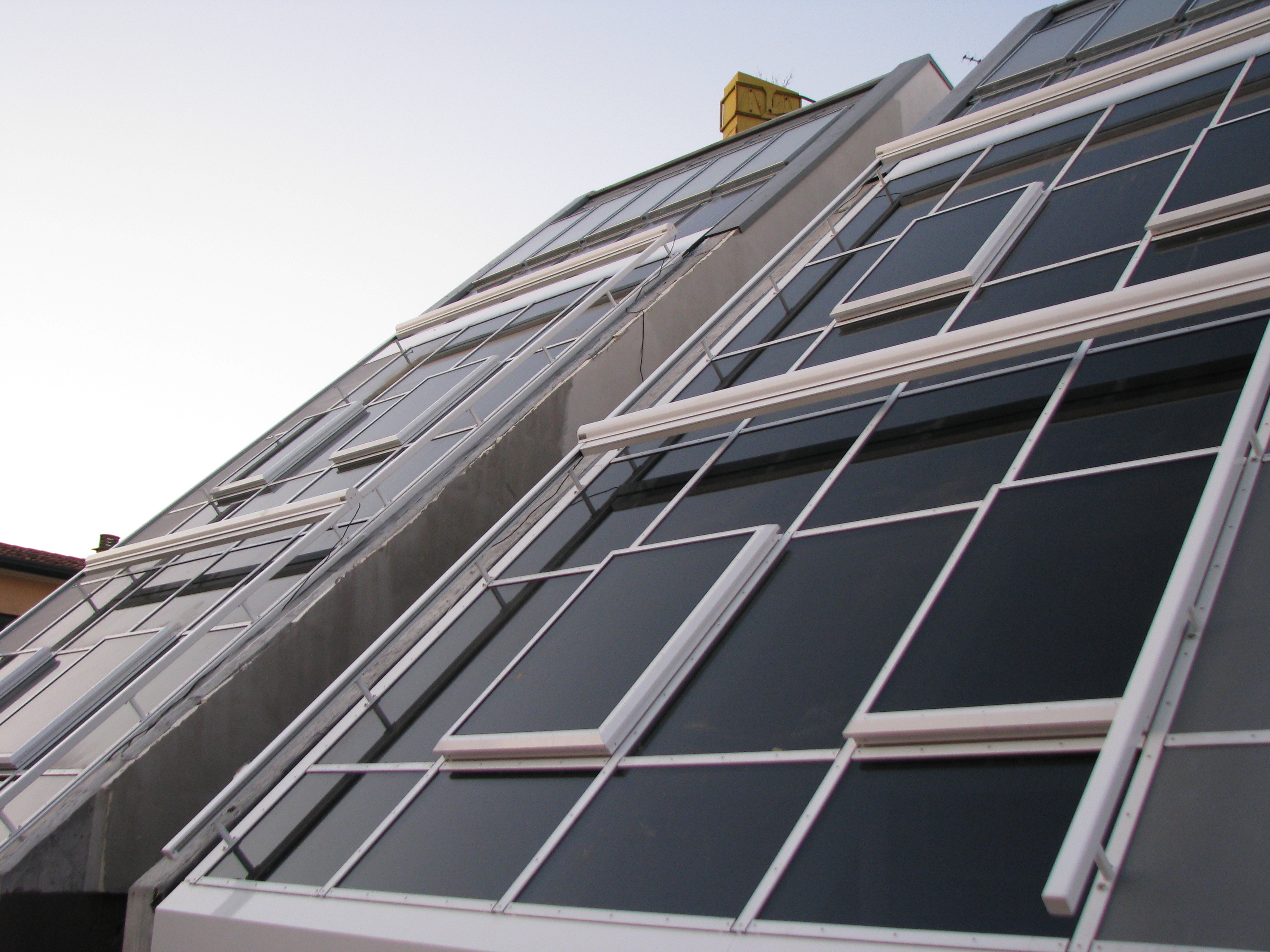

Realizations

Download


Notes

The contained information in this page may be imprecise because of possible technical modifications made after realization. The manufacturer reserves the right to make technical modifications without advance notice. Before making orders consult your manufacturer or retailer trusted. The roller blind is designed for the sun protection of the space where it is located. Every other use is inappropriate and dangerous. Marinello Tende cannot be considered responsible for possible damages caused by improper, erroneous and unreasonable use. The roller blind must be installed perpendicular to the horizontal area. When the danger of icing is present the roller blind cannot be operated, in case of strong wind it is necessary to wrap up the roller blind. The fabric can have folds that do not influence the proper functioning of the roller blind.
